Description
Specification
|
General
|
|
1
|
Manufacturer
|
JJCC Forklift
|
|
2
|
Power Type
|
Diesel
|
|
3
|

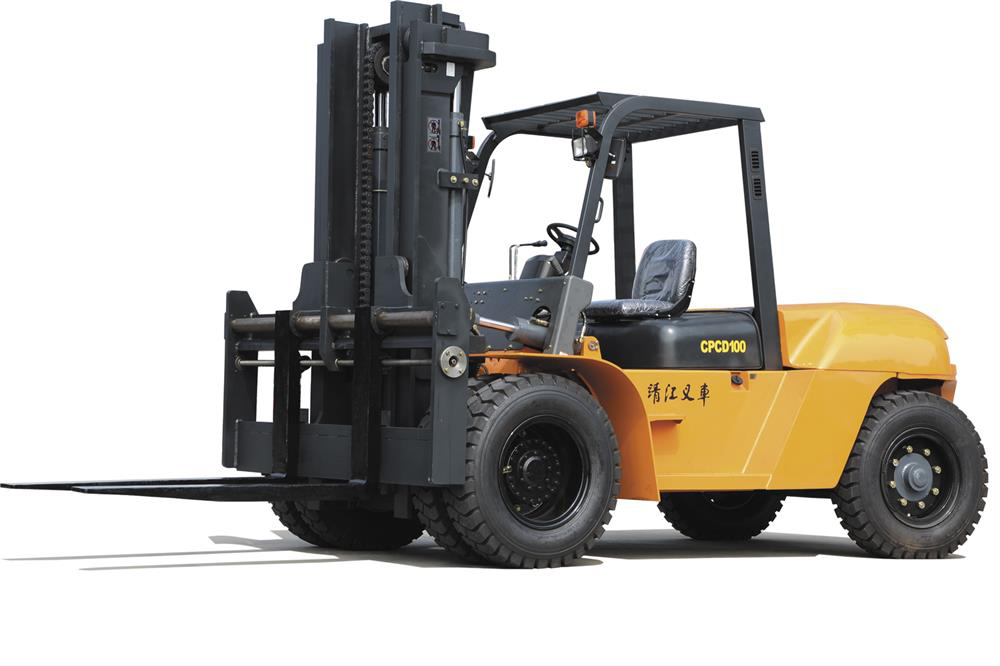

Model No.
|
CPCD80
|
CPCD100
|
CPCD80
|
CPCD100
|
|
4
|
Rated Capacity
|
Kg
|
8000
|
100000
|
8000
|
100000
|
|
5
|
Load Center
|
mm
|
600
|
600
|
600
|
600
|
|
Dimensions
|
|
6
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
3000
|
|
7
|
Free Lifting Height
|
mm
|
200
|
200
|
200
|
200
|
|
8
|
Fork Size
|
mm
|
1220x152x60
|
1220x180x80
|
1220x152x60
|
1220x180x80
|
|
9
|
Fork Spread (Outside) Max. /Min
|
mm
|
430/2140
|
430/2140
|
430/2140
|
430/2140
|
|
10
|
Mast Tilt Angle
|
deg
|
6/12
|
6/12
|
6/12
|
6/12
|
|
11
|
Front Overhang
|
mm
|
710
|
730
|
710
|
730
|
|
12
|
Overll Diemensions
|
Overall Length
|
mm
|
5120
|
5750
|
5120
|
5750
|
|
13
|
Overall Width
|
mm
|
2245
|
2245
|
2245
|
2245
|
|
14
|
Mast Closed Height
|
mm
|
2850
|
2850
|
2850
|
2850
|
|
15
|
Mast Extended Height
|
mm
|
4250
|
4250
|
4250
|
4250
|
|
16
|
Overhead Guard Height
|
mm
|
2580
|
2580
|
2580
|
2580
|
|
17
|
Min.Turning Radius
|
mm
|
3700
|
3950
|
3700
|
3950
|
|
18
|
Min.Right Angle Aisle Width
|
mm
|
3310
|
3540
|
3310
|
3540
|
|
Performance
|
|
19
|
No/Full Load
|
Travel Speed
|
km/h
|
28/24
|
26/20
|
28/24
|
26/20
|
|
20
|
Lift Speed
|
mm/sec
|
460/350
|
390/280
|
410/350
|
350/300
|
|
21
|
Max.Gradeability
|
%
|
23
|
20
|
25
|
22
|
|
22
|
Selft Weight
|
kg
|
10490
|
12510
|
10490
|
12510
|
|
Chassis
|
|
23
|
Tires
|
Front
|
mm
|
4x900-20-14PR
|
4x900-20-14PR
|
4x900-20-14PR
|
4x900-20-14PR
|
|
24
|
Rear
|
mm
|
2x900-20-14PR
|
2x900-20-14PR
|
2x900-20-14PR
|
2x900-20-14PR
|
|
25
|
Tread
|
Front
|
mm
|
1600
|
1600
|
1600
|
1600
|
|
26
|
Rear
|
mm
|
1700
|
1700
|
1700
|
1700
|
|
27
|
Wheel Base
|
|
2500
|
2800
|
2500
|
2800
|
|
28
|
Min.Mast Ground Clearance
|
|
250
|
250
|
250
|
250
|
|
Drive Unit&Control
|
|
29
|
Battery
|
V/AH
|
2x12/80
|
2x12/80
|
2x12/80
|
2x12/80
|
|
30
|
Engine
|
Model
|
|
6102
|
6102
|
6BG1－02
|
6BG1－02
|
|
31
|
Manufacturer
|
|
CHINA
|
CHINA
|
JAPAN ISUZU
|
JAPAN ISUZU
|
|
32
|
Rated Power
|
KW/rpm
|
80.9/2500
|
80.9/2500
|
82.3/2000
|
82.3/2000
|
|
33
|
Rated Torque
|
N.m/rpm
|
353/1600
|
353/1600
|
416/1400-1600
|
416/1400-1600
|
|
34
|
No.of Cylinders
|
|
6
|
6
|
6
|
6
|
|
35
|
Bore x Stroke
|
mm
|
102 x 118
|
102 x 118
|
105 x 125
|
105 x 125
|
|
36
|
Displacement
|
cc
|
5785
|
5785
|
6494
|
6494
|
|
37
|
Fuel Tank Capacity
|
L
|
140
|
140
|
140
|
140
|
|
38
|
Consumption
|
g/kw.h
|
231
|
231
|
233
|
233
|
