Description
Specification
|
General
|
|
1
|
Manufacturer
|
|
|
2
|
Power Type
|
|
|
3
|

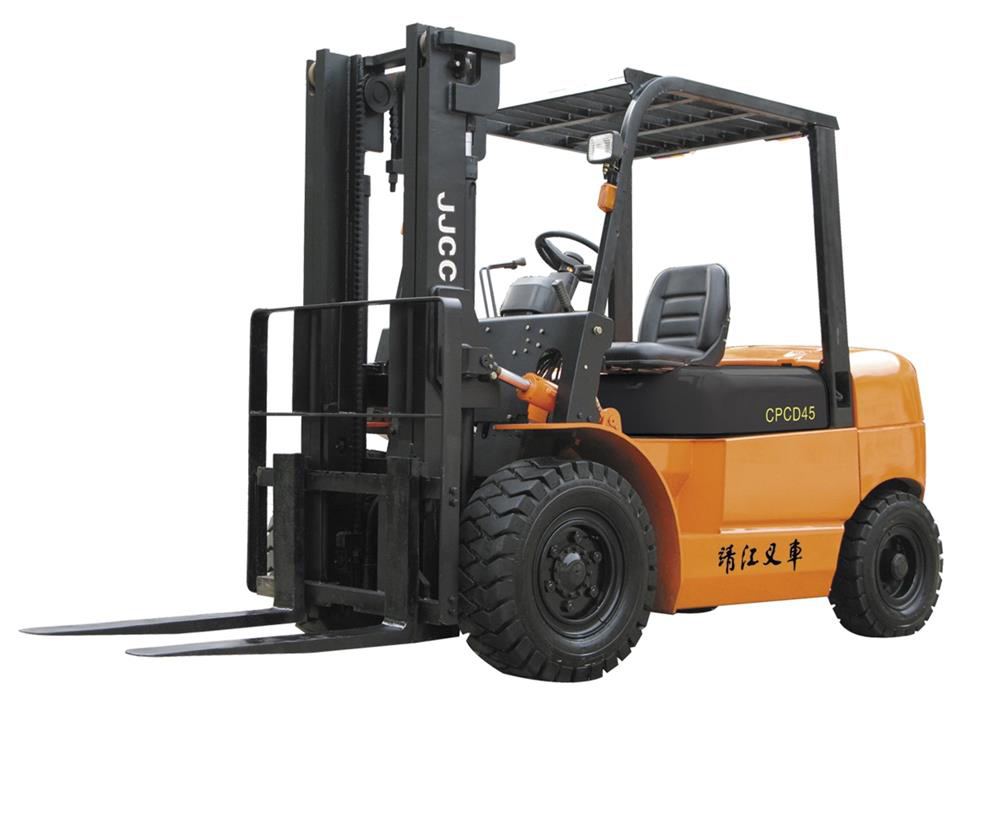

Model No.
|
CPCD40
|
CPCD45
|
CPCD50
|
|
4
|
Rated Capacity
|
Kg
|
4000
|
4500
|
5000
|
|
5
|
Load Center
|
mm
|
500
|
500
|
500
|
|
Dimensions
|
|
6
|
Lifting Height
|
mm
|
3000
|
3000
|
3000
|
|
7
|
Free Lifting Height
|
mm
|
150
|
150
|
150
|
|
8
|
Fork Size
|
mm
|
1070x150x50
|
1070x150x55
|
1070x150x55
|
|
9
|
Fork Spread (Outside) Max. /Min
|
mm
|
1200/300
|
1200/300
|
1200/300
|
|
10
|
Mast Tilt Angle
|
deg
|
6/12
|
6/12
|
6/12
|
|
11
|
Front Overhang
|
mm
|
565
|
565
|
565
|
|
12
|
Overll Diemensions
|
Overall Length
|
mm
|
4190
|
4190
|
4195
|
|
13
|
Overall Width
|
mm
|
1485
|
1485
|
1485
|
|
14
|
Mast Closed Height
|
mm
|
2350
|
2350
|
2350
|
|
15
|
Mast Extended Height
|
mm
|
4100
|
4100
|
4100
|
|
16
|
Overhead Guard Height
|
mm
|
2300
|
2300
|
2300
|
|
17
|
Min.Turning Radius
|
mm
|
2850
|
2850
|
2890
|
|
18
|
Min.Right Angle Aisle Width
|
mm
|
3415
|
3415
|
3460
|
|
Performance
|
|
19
|
No/Full Load
|
Travel Speed
|
km/h
|
20
|
20
|
20
|
|
20
|
Lift Speed
|
mm/sec
|
450
|
450
|
430
|
|
21
|
Max.Gradeability
|
%
|
20
|
20
|
20
|
|
22
|
Selft Weight
|
kg
|
6450
|
6770
|
7050
|
|
Chassis
|
|
23
|
Tires
|
Front
|
mm
|
300-15-14PR
|
300-15-14PR
|
300-15-14PR
|
|
24
|
Rear
|
mm
|
700-12-12PR
|
700-12-12PR
|
700-12-12PR
|
|
25
|
Tread
|
Front
|
mm
|
1185
|
1185
|
1185
|
|
26
|
Rear
|
mm
|
1190
|
1190
|
1190
|
|
27
|
Wheel Base
|
|
2000
|
2000
|
2000
|
|
28
|
Min.Mast Ground Clearance
|
|
145
|
145
|
145
|
|
Drive Unit&Control
|
|
29
|
Battery
|
V/AH
|
2x12/80
|
2x12/80
|
|
|
30
|
Engine
|
Model
|
|
R4105G59A
|
S6S
|
|
|
31
|
Manufacturer
|
|
CHINA
|
JAPAN MITSUBISHI
|
|
|
32
|
Rated Power
|
KW/rpm
|
59/2400
|
52/2300
|
|
|
33
|
Rated Torque
|
N.m/rpm
|
270/1600
|
248／1700
|
|
|
34
|
No.of Cylinders
|
|
4
|
6
|
|
|
35
|
Bore x Stroke
|
mm
|
105 x 120
|
94 x 120
|
|
|
36
|
Displacement
|
cc
|
4330
|
4996
|
|
|
37
|
Fuel Tank Capacity
|
L
|
90
|
90
|
|
